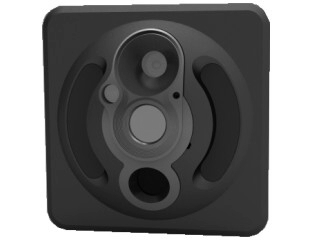

VistaFA2 Single Iris & Face Camera

  • Highest Quality Standards compatible Iris & Face Biometric imaging solution based on Vista Imaging's powerful & proven ViCAM®III Digital Imaging Engine
  • Standard USB 2.0 interface
  • Iris images are ISO/IEC 19794-6 compliant at 10" to taget
  • Face images are ISO/IEC 19794-5 compliant at 24" to target
  • Integated flash for face image captures
  • LiveEye anti-Spoof Detection to reliably detect a live target
  • Tested with today's leading biometric algorithms
  • Multi wavelength IR illumination for superior iris images in nearly all environments, meets international Eye Safety Requirements
  • Multi-positional iris illumination allowing authentication on target subjects with eyewear
  • Intelligent distance sensing technology provides accurate auto acquisition for iris captures
  • Integrated cold mirror & RGB Tricolor LED provide easy user self alignment feedback for fast iris captures
  • Integrated microphone & speaker provides 16-khz 16-bit audio I/O
  • Windows CE, XP, Vista, Windows 7 and Linux support
  • Full featured proven SDKs makes integration with custom applications quick & easy
  • VistaFA2 comes with integrated tripod mount
  • VistaFA2's small size of 4.0" by 4.0" by 2.25" at 8.5 oz, easily integrates into nearly any application


  • No touch Facility Access Control
  • Portable & Desktop Multimodal Biometric Solution
  • Physical & Logical Access markets
  • Stationary and portable biometric kiosks
  • National Identity programs
  • Financial & Banking security
  • Law Enforcement & Border Control

VistaFA2 Data Briefs
Download VistaFA2 databrief...

VistaFA2 User Manual
Download VistaFA2 User Manual...

VistaFA2 Software & Driver Packages
Download VistaFA2 Demo Software...

Vista Imaging's VistaFA2 is a complete multimodal biometric peripheral for Windows CE, XP, Vista, Windows 7 and Linux OS platforms. The VistaFA2 uses the highest quality state of the art digital imaging technology to provide a superior biometric imaging solution.
VistaFA2's iris capturing features include top of the line high resolution CMOS sensor for ISO/IEC 19794-6 compliant images of your iris, custom optics, multi wavelength IR illumination, tri-color RGB LED indicators coupled with our proprietary distance sensing and accurate focus analysis provide unique auto acquisition capabilities. Taken together these features provide an iris imaging solution which result in ease of use and clearer images in nearly all lighting conditions.
VistaFA2's face capturing features include 5MP CMOS images sensor (2560 x 1920) with special optics for clearer images, providing the highest quality ISO/IEC 19794-5 compliant images everytime.
VistaFA2 provides audio input and optional output for superior audio I/O features.
Contact us with your specific requirements to see how easily we can solve your biometric imaging needs.
